Specifying a sectional door operator: the four details we ask for

Choosing an operator for a sectional door is rarely about picking the single most powerful unit on the shelf. It is about matching a drive to the way the door actually moves and the conditions it meets every day. Over more than a decade of OEM and ODM work, the same four details keep deciding the answer, and they are worth gathering before a single drawing is started.

Answer these four questions and the candidate list narrows quickly. Everything else — control accessories, certification route, packaging — follows from them.

• Door type — residential sectional, commercial sectional, roller shutter or high speed door.
• Door size — clear opening width and height, plus the door leaf weight the drive has to lift.
• Cycles per day — how many complete open/close movements the door makes in normal service.
• Target market — the standards and certification marks the finished door must carry where it is sold.

Used together, these four turn a vague brief into a specification with a measurable duty and a defined compliance path.

Reading each detail in turn

Door type sets the architecture

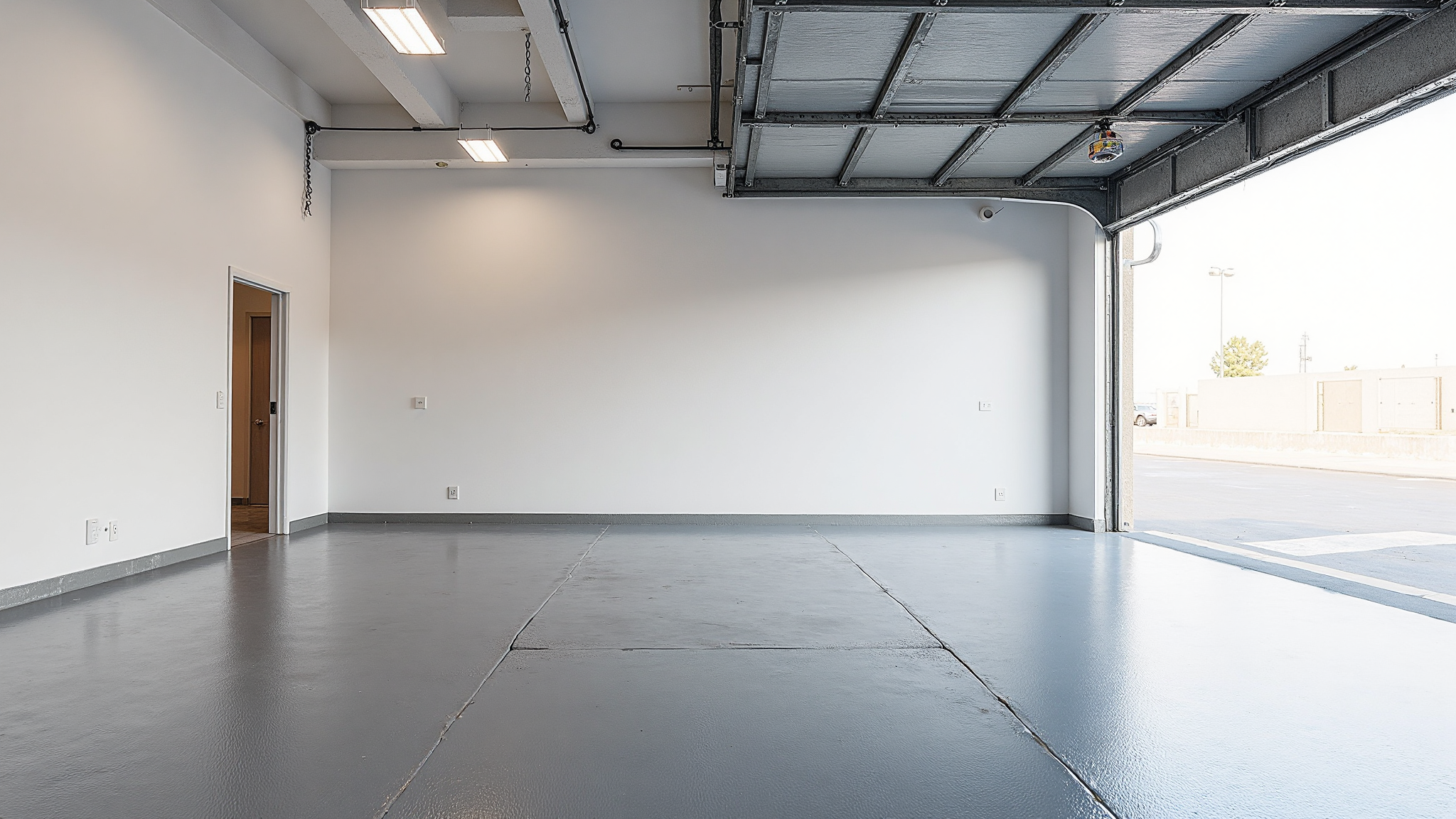

The door construction decides whether the operator drives a shaft, a belt, a chain or a directly coupled gearbox. A residential sectional door normally pairs with a ceiling-mounted unit from the AS, IN or INS series, where quiet running and a compact head unit matter more than raw force. A roller shutter asks for a tubular or shaft-mounted drive such as the SES or DC series, sized around the tube and the shutter curtain. Where a high speed door is required — logistics, clean areas, busy vehicle openings — the SEH and BL series bring the cycle speed and control logic that a standard drive cannot reach.

Door size turns into force

Width and height define the leaf area, and leaf area together with material weight defines the force the operator must deliver and hold. Oversizing a drive to be safe is as much a mistake as undersizing it: an oversized unit strains the door hardware and wastes cost, while an undersized one wears out early. For larger or heavier sectional doors, a TORSION 1 to 3 spring and shaft arrangement is specified alongside the operator so that the spring balance carries the door weight and the drive only has to start and stop it.

Cycles per day sets the duty class

A domestic garage may open a handful of times a day; a commercial or high speed door can run into the hundreds. Cycles per day is the number that separates a consumer-grade unit from an industrial one, and it drives motor thermal rating, gearbox quality and the choice of control board. Understating this figure is the most common route to premature failure, so it should be taken from the busiest realistic day rather than the average.

Target market defines the compliance path

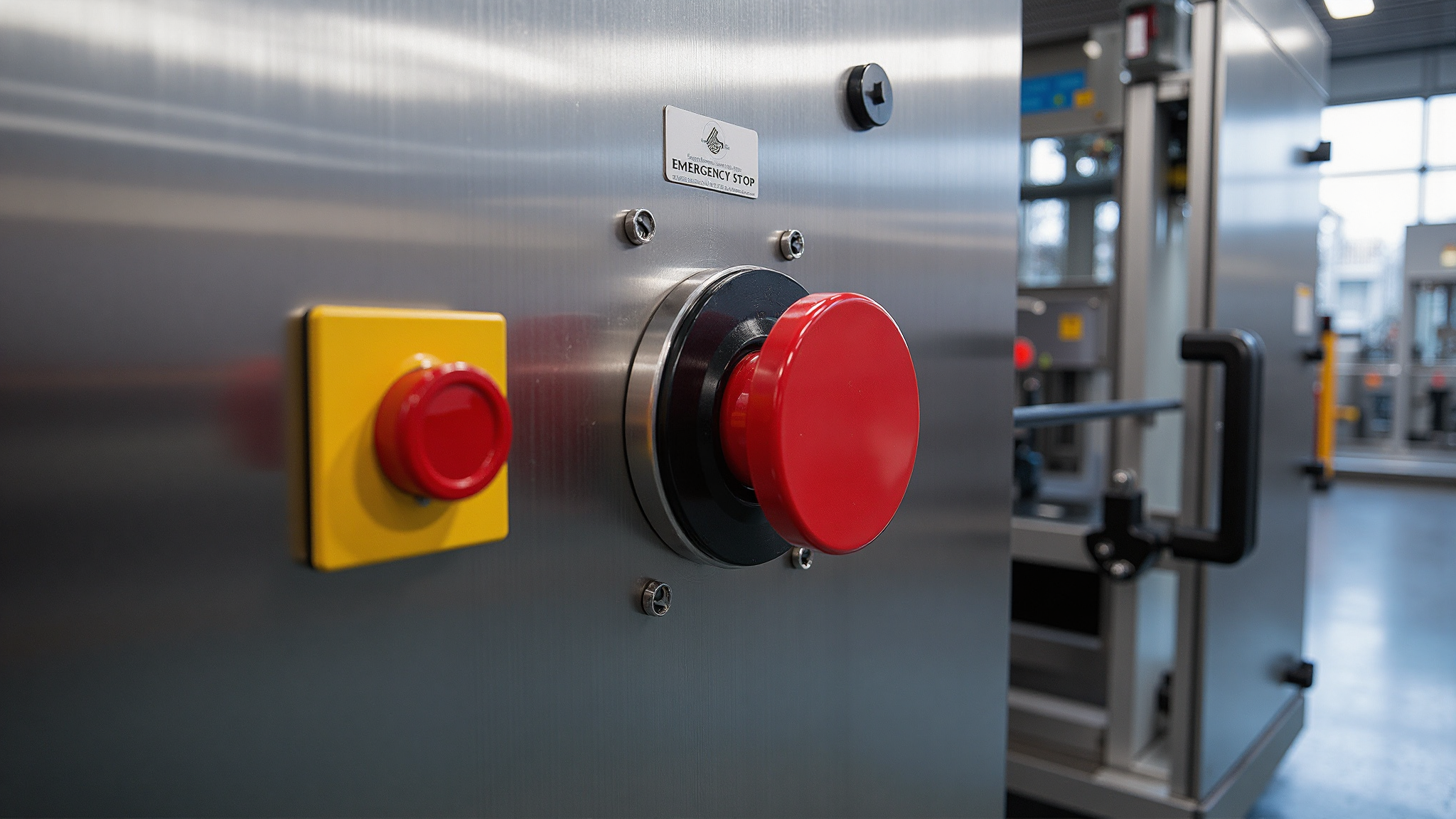

The market the door is sold into decides which standards the complete assembly must meet. A unit bound for Europe is built around the Machinery and EMC machinery directives together with the harmonised door standards for power-operated doors and gates, while goods for North America follow the UL route. Safety functions are graded according to the performance level the application demands, so the market brief and the safety concept have to be agreed before the design is frozen.

Get these four details in writing at the start of the project and most specification debates never happen — the operator just falls out of the numbers.

A short specification checklist

Detail	What to capture	Why it matters
Door type	Sectional, roller shutter or high speed	Selects shaft, belt or direct drive
Door size	Opening w x h and leaf weight	Sizes force and spring balance
Cycles per day	Peak daily movements	Sets duty class and control board
Target market	Destination country and marks required	Defines standards and safety grading

Bring us those four lines and the door type, the series and the certification route can be worked through together — whether the project runs as a standard catalogue selection or a fully customised OEM/ODM development.
